首頁 > 產品中心 >雙頭著色毛刷機

雙頭著色毛刷機

Double Headed Color Brush Machine

本機是專為竹木地板，家具等平面板材著色而設計。
This machine is specially designed for coloring bamboo and wood flooring furniture and other planar boards.

產品亮點
Highlights

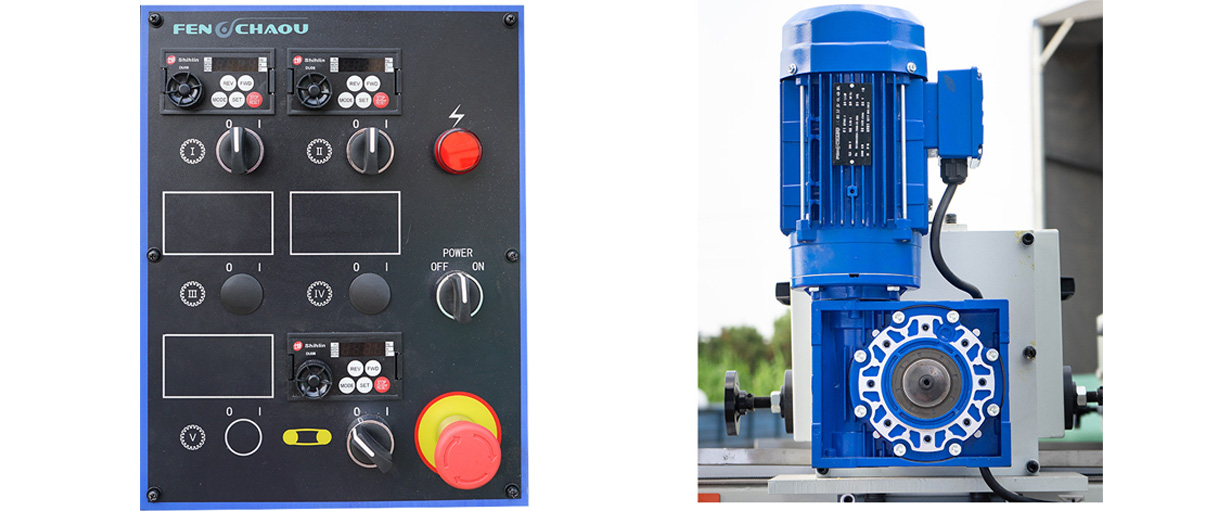

皮帶采用條紋系列，厚度3mm，輸送采用鋁合金外殼齒輪減速馬達，采用變頻器控制。
主體機架采用高強度工業鋁型材40*160系列與3T冷板所焊接底架組裝而成，升降采用燕尾槽上升下降，并附有高度計數器。

The belt adopts stripe series with thickness of 3mm. The transmission adopts gear deceleration motor with aluminium alloy shell and is controlled by frequency converter.
The main frame is assembled by 40*160 series of high strength industrial aluminium profiles and 3T cold plate welded underframethe dovetail trough is used for ascending and descending and a height counter is attached.


產品參數
Parameter
項目 Item 參數/Paramter
加工寬度 Working width 1300mm
加工厚度 Working thickness 3-80mm
輸送電機功率 Feeding motor power 0.75kw，變頻調速，Inverter
送料速度 Feeding speed 5-20m/min
總功率 Total power 5.9kw
外形尺寸 Overall dimensions 1500*2100*1650mm
