首頁 > 產品中心 >9頭線條砂光機

9頭線條砂光機

9 Heads Line Sander

采用多點分段多角度壓料方式，能順利輸送各種表面異形的工件，防止砂磨進行時工件的上下跳動和糾正工件的上下彎曲。
The method of multi-point and multi-angle pressing material can be used to transport various surface shaped workpieces smoothly, so as to prevent the workpiece from beating up and down and correct the workpiece's bending up and down.

產品亮點
Highlights

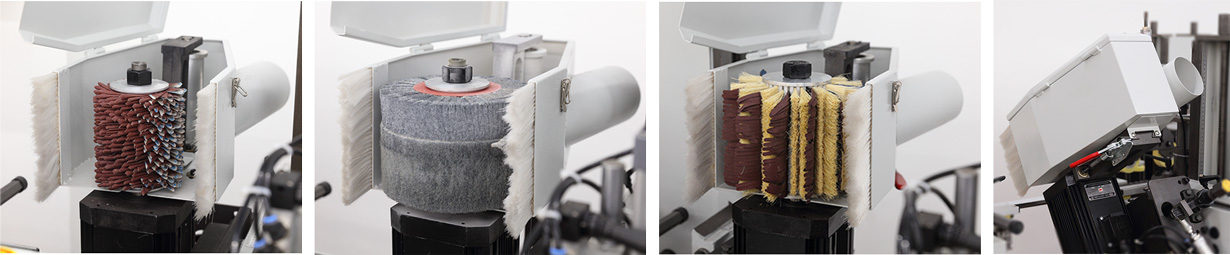

專業針對各種線條的仿形砂光，使用砂帶、八角砂片、砂布條輪、飛翼輪、尼龍輪等研磨材料調整為適合于工件表面的形狀，在砂頭電機的帶動下對工件進行仿形研磨；針對線條上的局部大平面，使用砂帶研磨，可以節省材料成本。
有效砂光在95%以上，完全可替代繁瑣的手工打磨。

Specially for the imitation sanding of various lines, the use of sand belts, octagonalsand sheets, sand cloth strips, flying wing  wheels, nylon wheels and other grinding materials to adjust the shape suitable for the surthe workpiece, driven by the sand head motor. The workpiece is modeledand ground; For the local large plane on the line,the use of sand belt grinding can save material costs.
Effective sand at 95 % or more, completely can replace the cumbersome manual grinding.


產品參數
Parameter
項目 Item 參數/Paramter
加工件寬度范圍 Processing Width Range 20-200mm
加工件厚度范圍 Processing thickness range 3-60mm
輸送電機功率 Feeding motor power
0.55kw×8，變頻調速,Inverter
工作氣壓 Working  pressure 0.6MPa
總功率 Total power 24.2KW
外形尺寸 Overall dimensions 6300*1500*1550mm
