首頁 > 產品中心 >立體干燥房

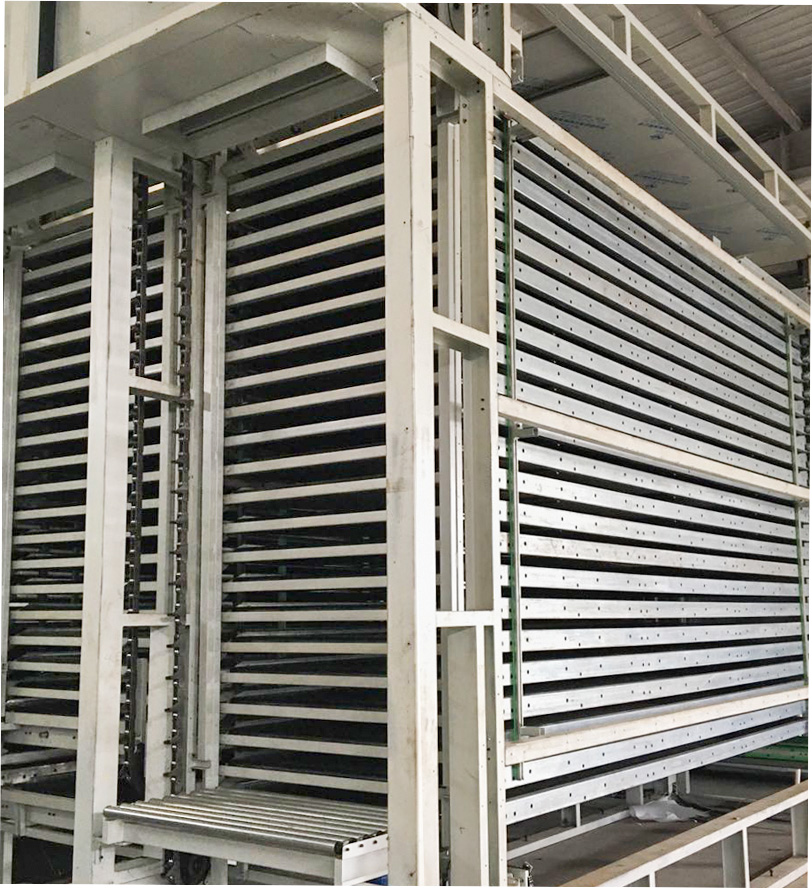

立體干燥房

Multi-story drying room - four stations

適用于長條形的門框、門線、畫框、窗簾架、舌槽企口板門窗配件、家具配件、踢腳線、地板等條狀工件進行PU、NC、AC和水性油漆涂裝后的油漆干燥。
The machine is suitable for paint drying of strip work pieces such as door frame door line picture frame curtain frame tongue-groove tongueplate door and window fittings furniture fittings ground Angle wire and floor after PU NC AC and water-based paint painting.
產品亮點
Highlights
立式干燥系統對于溶劑型或水性涂裝后的板式產品十分有效，人性化的設計能大大縮短干燥時間和提高生產效率。
節約時間：立體干燥房?jī)?nèi)輸送托盤可以垂直移動，整體的涂裝占地面積降到最低后，即使需求長的干燥時間都能滿足。

Vertical drying system is very effective for solder-based or water-based coating plate products. Humanized design can greatly shorten drying time and improve production efficiency.
Time saving: the conveying tray in the three-dimensional drying room can be moved vertically and the overall coating area can be reduced to the minimum even if the need for long drying time can be met.


產品參數
Parameter
項目 Item 參數/Paramter
加工寬度 Working width 1300mm
加工厚度 Working thickness 10-70mm
輸送電機功率 Feeding motor power 0.37kw*2，變頻調速，Inverter
送料速度 Feeding speed 3-6m/min
總功率 Total power 47.3kw
外形尺寸 Overall dimensions 6940*7220*5590mm
